70-72 A BODY W/ TRANS COOLER WORKS WITH GEN III 5.7L.6.1L.6.4L.&7.0L LX ENGINES 22" COMPLETE ALUMINUM W/ 2 ROW 1 1/4" CORE CUSTOM ALUMINUM SHROUD,HD SPAL FAN, CONTROLLER,SENDER AND WIRING HARNESS TOP TANK RESEMBLES ORIGINAL , 70-72 A-BODY W/ TRANS. COOLER RESEMBLES ORIGINAL TOP TANK
Will Not Work On Hell Cat/Demon or Hellephant Applications
RADIATOR ASSEMBLY 22" GEN III HEMI INSTALLATION 70-72 Â BODY W/AUTOMATIC TRANSMISSION
This Is Our Bolt -in/Drop-in/Resembles Original Style Extreme Heavy Duty Aluminum Radiator Assembly for Gen III Hemi Installations. It comes complete with Custom Aluminum Shroud with TWIN HD SPAL Fans Installed, Electronic Fan Controller and Sender, and Air By Pass flaps already assembled and installed. Just wire your controller and mount your sender and you are done. Radiator Core support Opening is 22". Comes with our "State of the Art" 2 Row X 1 1/4" Core for Excellent Cooling Ability. The Top Tank Resembles the Old Style Fedders Tank found on most Older Muscle Cars.
Works with:2005-2008 5.7L LX (Car & Grand Cherokee Engines),2005-2010 6.1L LX & WK (Car & Grand Cherokee),2011-2024 6.4L Car & Grand Cherokee Engines,Most ALL 6.1L & Non VVT 7.0L Based Crate Engines (Mopar Performance & Most Aftermarket Engines) with Right Side Lower Radiator Hose and Right Side Thermostat Outlet Nipple
70-72 A BODY WITH TRANSMISSION COOLER
Proudly Manufactured in the USA by Griffin Radiator for Bouchillon Performance Engineering
NOTE: 1-Fits 1970-1972 A-Body with 22" Radiator Support (Core Support) Opening...measure left to right for proper opening width with automatic transmissions
2-Will Not Work with 2003-2008 DR 5.7L Dodge Truck Engines, which had Right Side Lower Radiator Hose and Left Side Thermostat Outlet Nipple
3-For Molded Radiator Hoses, use 2-BPE20609G
4-Use S6074X Stainless Overflow Tank to Complete Installation (Not Included)
5-On A/C Applications, use BPE6665 Trinary Switch to control fan operation when A/C is on. It, along with Electronic Fan Controller on this Radiator will only allow Fan to run when required. Fan Operation, generally is not needed at 50 mph highway speeds or when A/C Compressor is First Cut on.
6-This Radiator is generally used on Automatic Transmission Vehicles, since there is a Transmission Cooler Built In. But can be used in a Manual Transmission application also
7-Inlet & Outlet Radiator Hose Nipple Diameters 1 3/4"

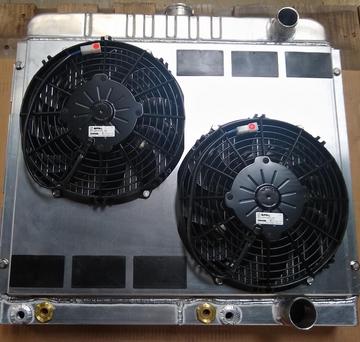

8-PICTURE OF RADIATOR IS A ACTUAL PIC OF RADIATOR
9-Will not work on 6.2L Hell Cat/Demon Applications
