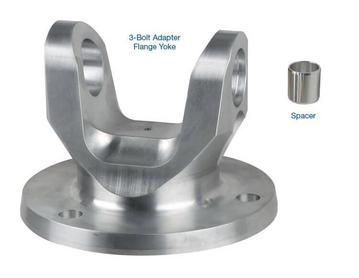

TR6060 Flanged Output Yoke (T35-GMFD-01K)

Bolt on Flanged Output Drive Yoke for TR6060 Treme4c 6 Speed Transmissions

Bolt on Yoke for an 6 speed Manual Transmission found in most of the 2008 and latter Challengers , Chargers with Manual 6 Speed transmission. Exact application for fitment is TR6060 Trmemc 6 Speed

With this yoke, it makes building a custom driveshaft easy for most Driveshaft Shops

TR6060 are found in the 5.7L, 6.1L, 6.4L & 6.2L Vehicles

Made of T6 Aircraft Aluminum. Accepts one of the most common and strongest Universal Joints made by Spicer, #1350

Includes centering bushing for some applications

T35-GMFD-01K  T35GMFD01K Flange flange

Specs

• U-Joint Series: 1350
• Pilot Type: F
• Material: 6061-T6
• Bolt Hole Dia.: 0.500"
• Flange Face to Centerline: 3.000"
• Weight: 1.980lbs
• Flange Outer Dia.: 5.450"
• Pilot Dia.: 0.631"
• Bolt Count: 3
• Bolt Circle Dia.: 110mm
