This Is Our Bolt-in/Drop-in/Resembles Original Style Extreme Heavy Duty Aluminum Radiator Assembly for B/RB Engines. It comes complete with Shroud Brackets to accept Original Four Screw Mounting Shroud (2998326). Radiator Core support Opening is 26". Comes with our "State of the Art" 2 Row X 1 1/4" Core for Excellent Cooling Ability. The Top Tank Resembles the Old Style Blackstone Tank found on most Older Muscle Cars.
Works with:361,383,400,426W,426 Crate Hemi and 440 Engines with Left Side(Drivers Side) Lower Radiator Hose and Right Side Top Upper Radiator Hose Nipple
70-72 B-BODY 70-71 E BODY WITH TRANSMISSION COOLER
Will also fit 1972-1974 E Body w/Big Block Installation with drivers side lower radiator hose water pump housing & 26" Radiator support Opening
Proudly Manufactured in the USA by Griffin Radiator for Bouchillon Performance Engineering
NOTE: 1-Fits 70-72 B-BODY 70-71 E BODY with 26" Radiator Support (Core Support) Opening...measure left to right for proper opening width with automatic transmissions
2-Will Not Work with 1973 & latter passenger side (right side) lower Radiator Hose Water Pump Housings
3-Original Hoses work with this assembly
4-Use S6074X Stainless Overflow Tank to Complete Installation (Not Included)
5-For Maximum Cooling we use the 2998326 Shroud, 215049 Thermal Fan Clutch, & 220618 6 Blade Fan.For RPM sensitive we use our 4120758 Viscous Fan Package .
6-This Radiator is generally used on Automatic Transmission Vehicles, since there is a Transmission Cooler Built In. But can be used in an Manual Transmission application also.
7-Will work on 1972-1974 E-bodys that have had a B/RB engine installed with a Left Side(Drivers Side) Lower Radiator Hose Water Pump Housing Installed (59-72) Aluminum or Cast Iron

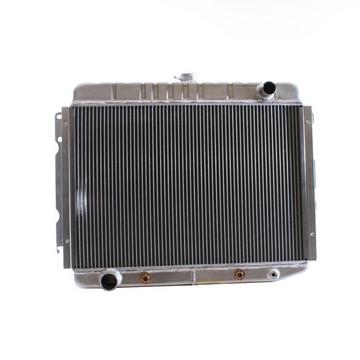

8-PICTURE OF RADIATOR IS AN EXAMPLE ONLY/MAY NOT BE EXACT RADIATOR STATED ABOVE
