This Is Our Bolt -in/Drop-in/Resembles Original Style Extreme Heavy Duty Aluminum Radiator Assembly for A and some B/RB Engines. It comes complete with Shroud Brackets to accept Original Shroud. Radiator Core support Opening is 22". Comes with our "State of the Art" 2 Row X 1 1/4" Core for Excellent Cooling Ability. The Top Tank Resembles the Old Style Fedders Tank found on most Older Muscle Cars.
Works with:318,340,360, 361,383,400,426W,426 Crate Hemi and 440 Engines with Left Side(Drivers Side) Lower Radiator Hose and Right Side Top Upper Radiator Hose Nipple
66-69 A-BODY A-ENGINE WITH TRANSMISSION COOLER
Proudly Manufactured in the USA by Griffin Radiator for Bouchillon Performance Engineering
NOTE: 1-Fits 1966-1969 A-Body with 22" Radiator Support (Core Support) Opening...measure left to right for proper opening width with automatic transmissions
2-Will Not Work with 1970 & latter A-Engine Water Pumps that had passenger side (right side) lower Radiator Hose Water Pumps .
3-Original Hoses work with this Assembly
4-Use S6074X Stainless Overflow Tank to Complete Installation (Not Included)
5-For Maximum Cooling & A/C, reuse the original Shroud,215049 Thermal Fan Clutch, & 220618 6 Blade Fan.For RPM sensitive we use our 4120758 Viscous Fan Package .
6-This Radiator is generally used on Automatic Transmission Vehicles, since there is a Transmission Cooler Built In. Can be used in an Manaul Transmission applications also

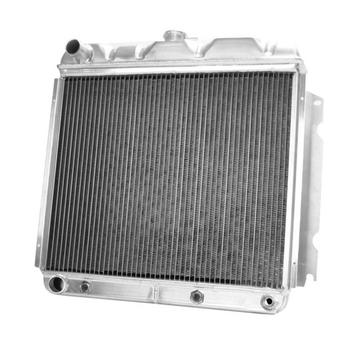

7-PICTURE OF RADIATOR IS AN EXAMPLE ONLY/MAY NOT BE EXACT RADIATOR STATED ABOVE
