Fuel Injected Hell Cat 1962-1965 B Body Fuel Tank (CR12HCFI)

525 LPH Fuel Pump, Tank and Sender Assembly

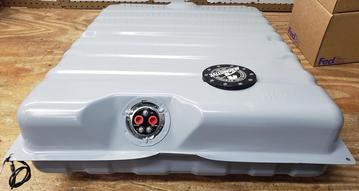

1962-1965 Fuel Injected B Body Fuel Tank

The tank designed to fit 1962-1965 B Bodies w/Hell Cat 6.2L Engines.  Our direct bolt in original style fuel tank assembly complete with built in Aeromotive 525LPH Fuel Pump, level sensor and fuel reservoir. Bolts in with stock strap or ST223 strap. This tank is a considerable savings compared to custom made tanks that have been available in the past. Powder Coated/Galvanized steel. This Tank to be used in 6.2L 707 H.P. Hell Cat Gen III Crate Hemis of factory horsepower rating of 707 H.P.  Original Chrysler Instrument gauges works well with this tank.

WORKS WITH: 1-Original Filler Tube, filler tube grommet, and strap(s) (Not Included)

2-Use BPE#3404182 for new filler tube grommet/ For Replacement Strap, order ST223

3-For a Complete Fuel Line Delivery Kit for your 6.2L Hell Cat install, complete from tank to snap on fuel rail, Call For Kit #.

4-This tank works with Hell Cat 707 H.P. Installations. Not Suited for Red Eye, Demon or Helliphant Engines

5-Fuel System Does NOT require external Fuel Pressure Regulator when used with the Mopar Performance 6.2L Computer Managment System, which has a Fuel Module to controlm the Pulse Width Modulated 525LPH Fuel Pump

525lph Hell Cat Application Specs:

• Fuel Injected Engines (gasoline):
  • Gasoline: up to 1200 HP – naturally aspirated.
  • Gasoline: up to 900 HP – forced air induction
• OEM style tank, fully assembled.
• 15-Gallon Capacity.
• Fuel level sending unit 73-10 ohm, normal Chrysler Gauges.
• Complete with new tank, fuel pump, fuel sock.
• Phantom baffle assembly built-in.
• AN-06 O-ring Inlet/outlet ports in factory stock location.
